1973 Pearson 36

https://pearsonyachts.org/models/pearson-36.html

pearsonyachts.org/models/pearson-36.html

Hull Type: Fin with rudder on skeg

Rigging Type: Masthead Sloop

LOA:36.56 ft / 11.14 m

LWL:29.16 ft / 8.89 m

S.A. (reported): 601.00 ft² / 55.83 m²

Beam:11.08 ft / 3.38 m

Displacement: 13,500.00 lb / 6,123 kgBallast:6,100.00 lb / 2,767 kg

Max Draft: 6.00 ft / 1.83 m

Construction: FG w/balsa cored deck

Ballast Type: Lead

First Built:1972, Last Built:1976

# Built:103

Builder: Pearson Yachts (USA)

Designer: William Shaw

Make: Yanmar

Type: Diesel

Model: 3YM30

HP: 29

SN: E17522

Hours: 900

Fuel: 20 gals / 76 L

Water: 60 gals / 227 L

 S.A. / Displ.: 17.02

Bal. / Displ.: 45.19

Hull Speed: 7.24 kn

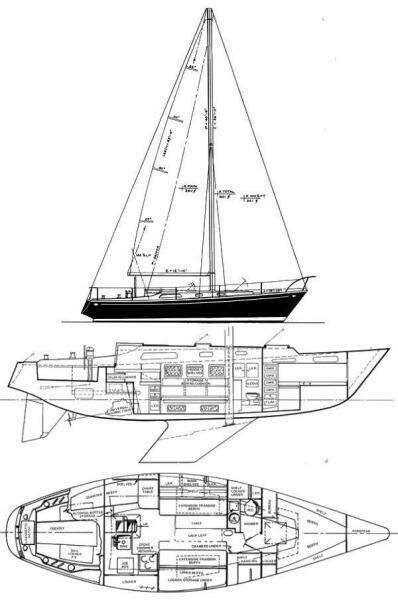

I: 46.00 ft / 14.02 m

J: 14.83 ft / 4.52 m

P: 40.50 ft / 12.34 m

E: 12.83 ft / 3.91 m

S.A. Fore: 341.09 ft² / 31.69 m²

S.A. Main: 259.81 ft² / 24.14 m²

S.A. Total (100% Fore + Main Triangles): 600.90 ft² / 55.83 m²

S.A./Displ. (calc.): 17.02 Est.

Forestay Length: 48.33 ft / 14.73 m

Mast Height from DWL: 50.42 ft / 15.37 m

https://pearsonyachts.org/models/pearson-36.html

According to the original literature, the PEARSON 36 was designed with the "IOR 1 ton rule in mind".
