Overview

Crosswater 49 - Island Hopper

An economical power catamaran passagemaker. With a range capability of 5000 nautical miles at 8 knots, Crosswater exemplifies the qualities of a true “passage-maker”.

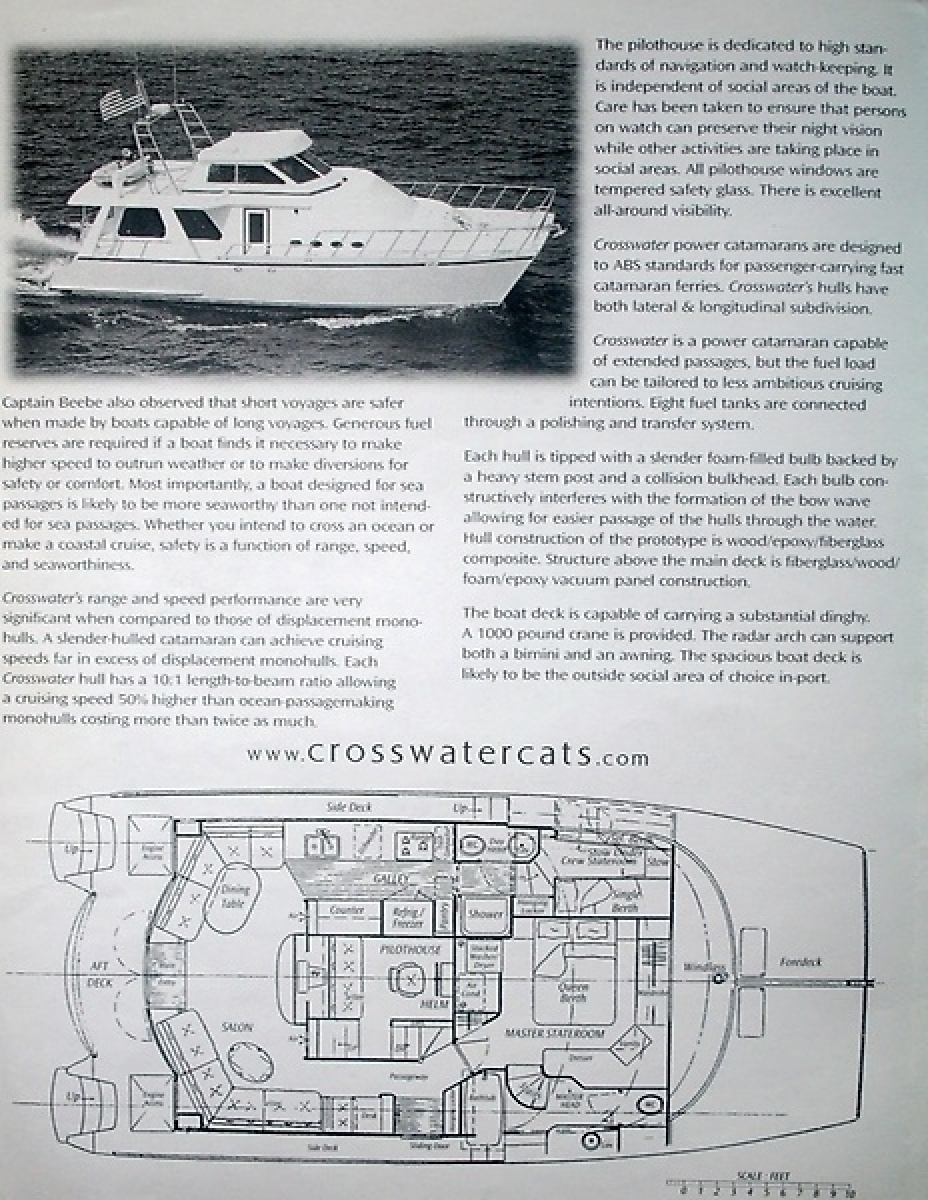

The pilothouse is dedicated to high standards of navigation and watch-keeping. It is independent of social areas of the boat. Care has been taken to ensure that persons on watch can preserve their night vision while other activities are taking place in social areas. All pilot house windows are tempered safety glass, there is excellent all-around visibility.

Crosswater is a power catamaran capable of extended passages, but the fuel load can be tailored to less ambitious cruising intentions. Eight fuel tanks are connected through a polishing and transfer system. This system can provide the two rear most tanks wit fuel for the engine on each side.

Each hull is tipped with a slender foam-filled bulb backed by a heavy stern post and a collision bulkhead. Each bulb constructively interferes with the formation of the bow wave allowing for easier passage of the hulls through the water. Hull construction is wood/epoxy/fiberglass composite. Structure above the main deck is fiberglass/wood/foam/epoxy vacuum panel construction.

The boat top deck supports Atlantic Towers fiberglass and aluminum top, carrying 10 solar panels, radar and KVH HD7 dish. The spacious boat deck is likely to be the outside social area of choice at anchor or in port.

Key Features

Built for the Long Haul: The vessel features exceptional fuel capacity (up to 2,260 gallons), allowing for incredible long-distance endurance.

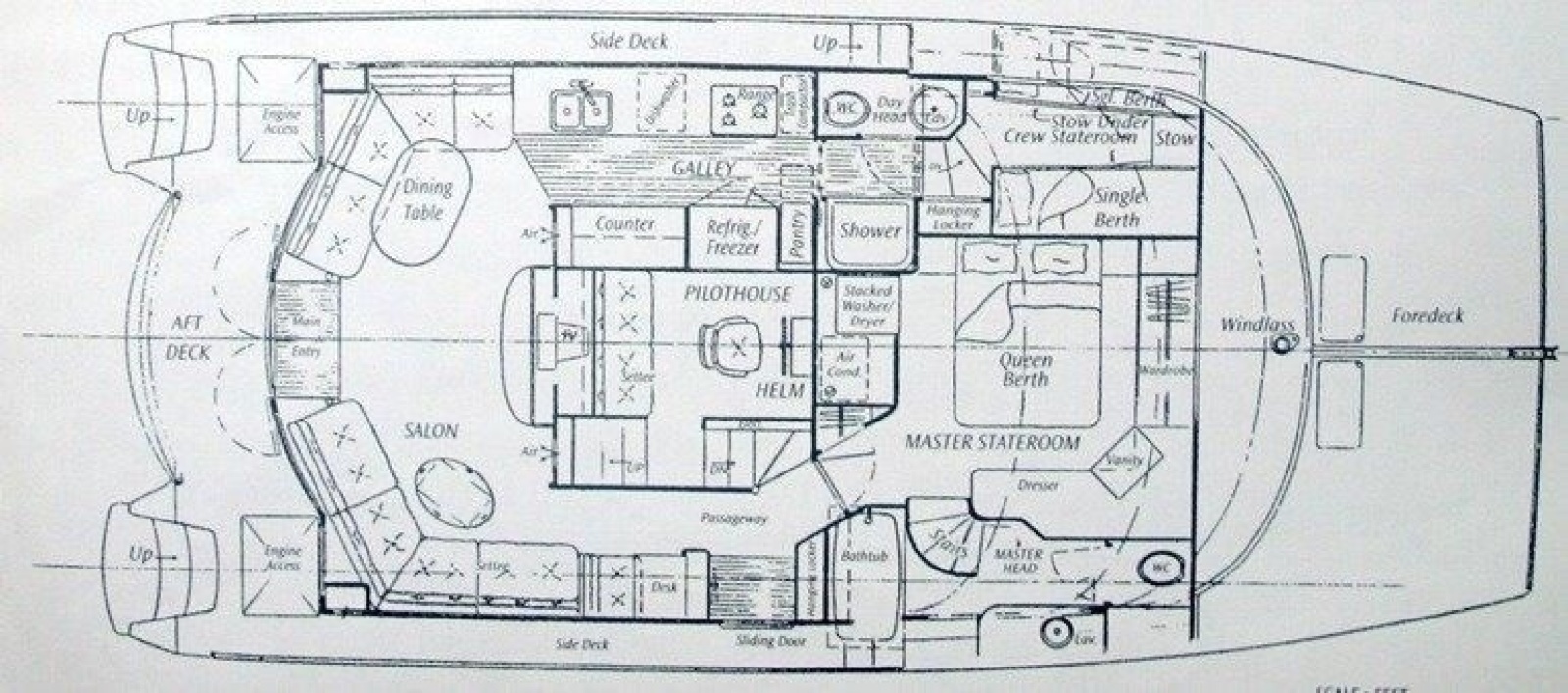

Layout: Typically configured with 2 staterooms and 2 heads, including an owner's master suite with a queen-sized bed, ensuite head, tub, and shower, as well as a convertible guest stateroom.
Mechanical: Powered by twin Yanmar 4LHADTE diesels (190 hp each) and often customized with heavy-duty off-grid features like large solar arrays (up to 3,000 watts) and 12.5 kW generators.
Design: Each hull features a foam-filled bulb that constructively interferes with the bow wave, greatly increasing the boat's hydrodynamic efficiency.
DimensionsOverall Length: 49 ft 11 inches
Beam (Width): 23 ft
Draft: 3 ft
Displacement: 40000 lbs

Interior

Heads (Bathrooms): 2
Staterooms: 2
Berths: 5
PerformanceCruise Speed: 9 knots
Max Speed: 12 knots
Fuel Capacity: 2260 gal
Water Capacity: 220 gal
Holding Tank: 20 gal
ConstructionHull Material: Composite

Additional InformationTop deck lounge chairs with pads and covers
West Marine folding lounge chairs
Floating lounge mats
2 person inflatable towable with rope
Air draft is 20’ 7” to the top of the KVH satellite dish; 18’ 4” with the KVH dish removed — important for bridge clearance on Great Loop cruising

Tampa Yacht Sales, INC is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Bluewater Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Specifications

Dimensions

Length Overall49' 9"

Beam23' "

Draft6' "

Details

Year2001

ManufacturerCustom

ModelCrosswater Passagemaker 49

CategoryCatamaran

Hull MaterialFiberglass

Accommodation

Sleeps6

Performance

Fuel TypeDiesel

Tank Capacities

Fuel2,260 gal

Fresh Water200 gal

Holding20 gal

Engines

Engine 1Yanmar 4LHADTE

InboardType

190HP

5,768Hours

Engine 2Yanmar 4LHADTE

InboardType

190HP

5,768Hours

Generators

Generator 1Phasor

525Hours

Full Details

Accommodations

Master Stateroom

Queen-size Select Comfort bed, ensuite head, tub & shower

Guest Stateroom

2 single berth converts to queen size ensuite head & shower

Additional berth on couch in salon

Galley

GE dryer and Panda washer
GE trash compactor
IsEasy 3-burner propane cooktop with 2 – 20lbs propane tanks
GE Advantium 120 microwave/convection oven
LG 23 cu. ft. French door refrigerator/freezer with ice maker
Miele dishwasher
Magma outdoor grill with 20bls propane tank

Deck and Equipment

Deck(10) heavy duty stainless steel cleats (15″ & 18″)
88 # Rocna anchor on tilting bow roller
200 feet of 3/8″ chain
Fortress 55 anchor w/ 50’ chain and 200’ nylon rode
Lewmar Concept 3 vertical axis anchor windlass
Bow rails and side rails with safety lines
Safety lines across aft steps to swim platform
Mooring lines and fenders
(3) large storage lockers in fore deck for mooring lines, fenders, spare anchor, and gas can for dinghy
Winslow Inflatable Life Raft, Model 60SL/0
(6) life jackets
EPIRB
Life ring
Jim Buoy horseshoe life ring
ACR Strobe light
Flares/bell/horn
Ditch Bag
First aid Bag
Manual bilge pump
Dinghy2019 10’ Highfield
2019 15 hp Tohatsu 4-stroke engine with transom lift
Lifting Sling
Anchor

Electronics and Navigation

Raymarine E120 Classic Plotter
Raymarine 4 kw radar with 24″ radome
Raymarine ST6000 Autopilot with remote
Raymarine Depthfinder x 2
Raymarine ST60 Speed
Raymarine GPS
ICOM VHF Radio x 2
ICOM IC-M88 Handheld Radio
Compass
Vesper Watchmate XB-8000 Class B AIS with Monitor, GPS and VHF AIS Antenna
Horn
PA Horn
Flood Lights x 2
Starlink Gen 3
MOFI cellular modem
Aigean WIFI extender modem
Raymarine LifeTag Man-Overboard Alarm System
Main Salon: 40” Samsung smart TV w/ Sony DVD player
KVH HD7 TrackVision with DirecTV satellite TV receiver

Electrical and Plumbing

Power:

Genset -Diesel: 12.5 kw Phasor with sound cover
Solar: 3000w – (4) 450w panels, (6) 200w panels
(7) Victron charge controllers, Victron CerboS
Inverter/Charger: Outback 2800w with remote panel
House Batteries: 1200 amp-hrs at 12v with (6) L16 Lifeline AGM
Engine Start: (2) Group 24 Batteries AGM with Victron Smart Sense Monitors,
Balmar Duo Charge, Balmar Max Charge MC-614
Shore Power: 50 amp, 220 v with 50 ft cable/connections, spare 50 amp and 30 amp cables

Air Conditioning & Heating:

Four reversible heat pumps totaling 64,000 btu

Water System

Tankage: Total of 220 gallons in 4 tanks
Water Heater: 20 gallon

Waste System

Commodes: (2) electric fresh water plumbed directly to waste tanks
Black Water Tanks: (2) 35 gallon tanks with deck pumpout & lockable overboard discharge
Gray Water Tanks: (2) 52 gallon tanks with deck pumpout & pumped overboard discharge

Bilge
