35' 2016 Pursuit 355 OS

Features and Equipment

• ·        Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
• ·        Infused Fiberglass Structural Grid System with Molded Finish
• ·        Integrated Bilge Water Management System
• ·        5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
• ·        Integrally Molded Thru-Stem Anchor System with Fresh and Raw Water Washdown
• ·        Horizontal Anchor Windlass with Switch at Helm and Remote Switch at Anchor Locker
• ·        22lb 316L SS Plow Style Anchor, G-4 Chain, 200’ of 1/2”, 8 Plait
• ·        316L SS Anchor Roller with 8” Mooring Cleat
• ·        Molded Hull Side Frameless Tempered Glass Windows
• ·        3.0 HP Bow Thruster with Group 31 AGM Battery
• ·        Electric Oval Horn with SS Cover
• ·        Trim Tabs with Indicator Lights and Auto-Retract
• ·        Bronze Thru Hull Fittings Below Water Line
• ·        Chrome over Bronze Thru Hull Fittings Below 7 Degree Heel Line
• ·        Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
• ·        Bronze Garboard Drain
• ·        Integrated Transom Platform Extensions Outboard of Engines
• ·        4 Step Telescopic Boarding Ladder Mounted in Hull Platform
• ·        Forward Hull One (1) 1100 GPH Bilge Pump with Automatic Float Switch
• ·        High Density PVC Rubrail with Solid 316L SS Insert, and 316L SS Transom Cap
• ·        DECK & COCKPIT FEATURES
• ·        Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area and Overboard Drains
• ·        Hull and Deck Joint Mechanically Fastened
• ·        10” Pop Up Cleats (2) on Stern and 10” Hershoff Cleats Spring and Bow (4)
• ·        Molded Recessed Hatches with Gaskets and 316L SS Latches with Overboard Drain Tracks
• ·        1 1/4” Welded 316L SS Foredeck Grab Rail with 1” Stanchions
• ·        316LSS Foredeck Hand Rails (2)
• ·        316L SS Deck Plates for Water, Waste and Diesel
• ·        Four (4) 316L SS Rod Holders in Gunwale with (2) Two Drink Holders
• ·        Under Gunwale Rod Storage, Port and Starboard
• ·        Transom Walkthrough and Hinged Acrylic Transom Door with 316L SS Latch
• ·        Port and Starboard 316L SS Transom Grab Rails
• ·        Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
• ·        Captain’s Chair with Swivel Base, Foldable Armrests, Fore and Aft Adjustment
• ·        Molded Port Bridge Lounge Seating with Large Backrest, Folding Arm, Molded Footrest & Port
• ·        Articulating Armrest
• ·        Pursuit Cockpit Entertainment System: 12V Bluetooth® Compatible Stereo System, Premium
• ·        Speakers (7 Total, 4 in Hardtop, 2 Interior & Subwoofer), Amplifier and Remote at Helm
• ·        Entertainment Center with Molded Sink, Hot / Cold Faucet, Electric Grill, Cutting Board,
• ·        Storage, 120V Outlet and Fiberglass Lids/ Doors
• ·        Molded Port and Starboard Aft Facing Seats w/ Insulated Storage Below
• ·        1.3 cu. ft. Bridgedeck Refrigerator/Freezer w/Fiberglass Lid
• ·        Starboard Aft Facing Seat w/ Cup Holders and Storage Compartment
• ·        Lighted Oceana Blue 28 Gallon Recirculating Livewell
• ·        Cockpit Tackle Center
• ·        Folding Transom Seat with Patented Adjusting Backrest
• ·        316L SS Bridge, Cockpit and Helm Drink Holders
• ·        Port and Starboard Insulated Fishboxes in Cockpit w/ Dedicated Discharge Pumps
• ·        Cockpit Machinery Access Hatch
• ·        Fresh Water Wash with Hot / Cold Valve and Pull out Sprayer
• ·        Raw Water Outlet in Cockpit with Quick Connect Fittings and 25’ Hose
• ·        LED Cockpit Accent Lights (7) with Water Proof Switch in Cockpit
• ·        Port and Starboard 2 mile LED Navigation lights
• ·        Hardtop
• ·        Molded Fiberglass Hardtop Integrated Visor
• ·        Aft Structural Hardtop Supports with 4 Rod Holders
• ·        Custom Windshield System with Optically Clear Laminated Windshield Glass, Tempered Side
• ·        Glass with Infused Fiberglass Frame and Electrically Actuated Center Vent Window
• ·        Combination Anchor / Stern LED All-around Navigation Light.
• ·        Four (4) Tri Color LED Lights
• ·        Aft Facing Spreader Light
• ·        316L SS Fore / Aft Underside Grab Rails
• ·        316L SS Fore / Aft Topside Grab Rails
• ·        60 mil Stratoglass Side Curtains
• ·        Life Jacket Storage
• ·        Integrated Port & Starboard Overhead Glove Boxes
• ·        Port and Starboard Ventilation Hatches with Screens
• ·        Helm
• ·        Molded Fiberglass Aft Tilting Helm with Instrumentation Visor, Electronics Mounting Surface,
• ·        Fold Out Fiberglass Foot Rest / Platform and Safety Lanyard
• ·        Teleflex Tilt Sport Helm
• ·        316L SS Steering Wheel with Textured Grip and Control Knob
• ·        12V Switch Panel
• ·        Port and Starboard Heavy Duty Pantographic Windshield Wiper System with Washer Control
• ·        Compass
• ·        Trim Tab Control Panel and Indicator
• ·        Waterproof Stereo Remote
• ·        Two 12V Outlets (2) and Dual USB Charger (1)
• ·        Helm Fire Extinguisher
• ·        Interior cabin
• ·        Molded Acrylic Access Door with Secondary Framed Screen Door and 316L SS Locking Latch
• ·        Cabin Entry Steps with Custom Handrail and Wood Treads
• ·        Molded Cabin Hull Liner with Custom Solid Wood Tongue and Groove Floor Accents,
• ·        Mechanical Access, Drainage and Sound Damping Insulation
• ·        Molded Cabin Deck Liner with Sound Damping Insulation
• ·        240V/60 Cycle Interior Air Conditioning W/ Reverse Cycle Heat and Sound Shield. 16,000 BTU
• ·        Pursuit Digital Media Ready Entertainment Center with 28” LED TV and Dedicated, Amplified
• ·        TV Audio System
• ·        Electrically Actuated Custom V-Berth Seating with Fixed Cushions that Converts into Queen
• ·        size Berth. Solid Wood Table with Electrically Actuated Adjustable Table Base.
• ·        Fwd Hardwood Framed Accent Mirror
• ·        Hullside Windows Port and Starboard in Forward Berth with Curtains.
• ·        Forward Gunwale Storage Shelves Port and Starboard
• ·        Port and Starboard Forward Outboard Storage Compartments
• ·        7.5 cu. ft. In Floor Storage with Solid Wood Hatch
• ·        Cedar Lined Hanging Locker with Automatic LED Light
• ·        Flush Mounted Opening Foredeck Hatch with Screen
• ·        316L SS Opening Port Lights (2) with Screen
• ·        Premium Stereo Speaker (2)
• ·        12V Outlet (1) and Dual USB Charger (1)
• ·        Six Switch Panel with LED Floor Accent Light (2), Overhead Dinnette Lights (3), Fwd Reading
• ·        Lights (2), Overhead Galley Lights (2), Dedicated Galley Surface Light (1) and Table Actuator
• ·        CO Monitor
• ·        Galley (Port)
• ·        Corian® Galley Counter Top with Backsplash and LED Under Cabinet Surface Lighting
• ·        Stainless Steel Sink with Cutting Board Cover, Overboard Drain and Stainless Clad Composite
• ·        Thru Hull Fitting
• ·        Pressurized Hot/Cold Mixing Valve and Faucet
• ·        Galley Upper and Lower Storage Cabinet with Maple Drawers (3), Dedicated Storage, and
• ·        Trash Can
• ·        Galley Pantry Storage Locker with Four Shelves and Hardwood Keepers
• ·        12V, 4.6 cu. ft. Stainless Steel Refrigerator
• ·        12V LED Overhead Light (2)
• ·        240V Dual Burner Glass Cook Top, 120V Microwave Oven
• ·        120V Outlet with GFI Protection (1)
• ·        Fire Extinguisher
• ·        316L SS Opening Port Light with Screen
• ·        Head (Starboard)
• ·        Fiberglass Enclosed Head Compartment with Non-Skid Pattern Area
• ·        Custom 1 1/4” Wood Framed Entrance Door with Custom Latch and Full Length Mirror
• ·        Designer Sink with Corian® Countertop with Storage Cabinet Below
• ·        Vacuum Flush Marine Head with 22 Gallon Holding Tank, Macerator Discharge Pump, Deck
• ·        Pump-out Fitting and Bronze Through Hull Fitting
• ·        Full Height Storage Cabinet with Shelves and Acrylic Bi-Fold Shower Divider
• ·        316L SS Opening Port Light with Screen
• ·        Vanity Storage Cabinet with Shelves and Vanity Mirror
• ·        Toilet Tissue Holder
• ·        Grab Rail / Towel Rack
• ·        Shower with Hot/Cold Mixing Valve, Shower Wand and Adjustable Height Bar
• ·        Shower Sump Box Drain with Automatic Discharge
• ·        Two Switch Panel with Overhead LED Lights (2) LED Floor Accent Light (1)
• ·        120V Outlet with GFI Protection (1)
• ·        Aft Berth
• ·        Aft Full Size Berth with Recessed, Wood Framed 6” Inner Spring Mattress
• ·        316L SS Opening Port Light with Screen
• ·        Aft Rod Storage for 4 Rods
• ·        Switch Panel with Overhead LED Lights (4)
• ·        120V Outlet with GFI Protection (1) and 12V Outlet (1)
• ·        Electrical Systems
• ·        UL® Rated Fully Tinned, Color Coded Copper Wire
• ·        Custom Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
• ·        Custom Built, One Piece Electrical Harness with Water Proof Connectors and Chafe Protection
• ·        Powder Coated, Aluminum, Screen Printed (Front & Back) Main Breaker Panels
• ·        Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard
• ·        Drain
• ·        240V 50 Amp 60 Cycle Dockside Power Connection
• ·        240V 50 Amp 50’ Dockside Power Cord with Wireless/Switch Operated Electric Cord Retract
• ·        Reel
• ·        Five Battery System: Port Engine (1) Starboard Engine (1), Bow Thruster (AGM) (1) House
• ·        (AGM) (1), and Electronics (AGM) (1)
• ·        One 40 AMP Battery Charger For House, Electronics and Bow Thruster Bank
• ·        One 20 AMP Battery Charger for Engine Bank
• ·        One Grounding Bus Bar

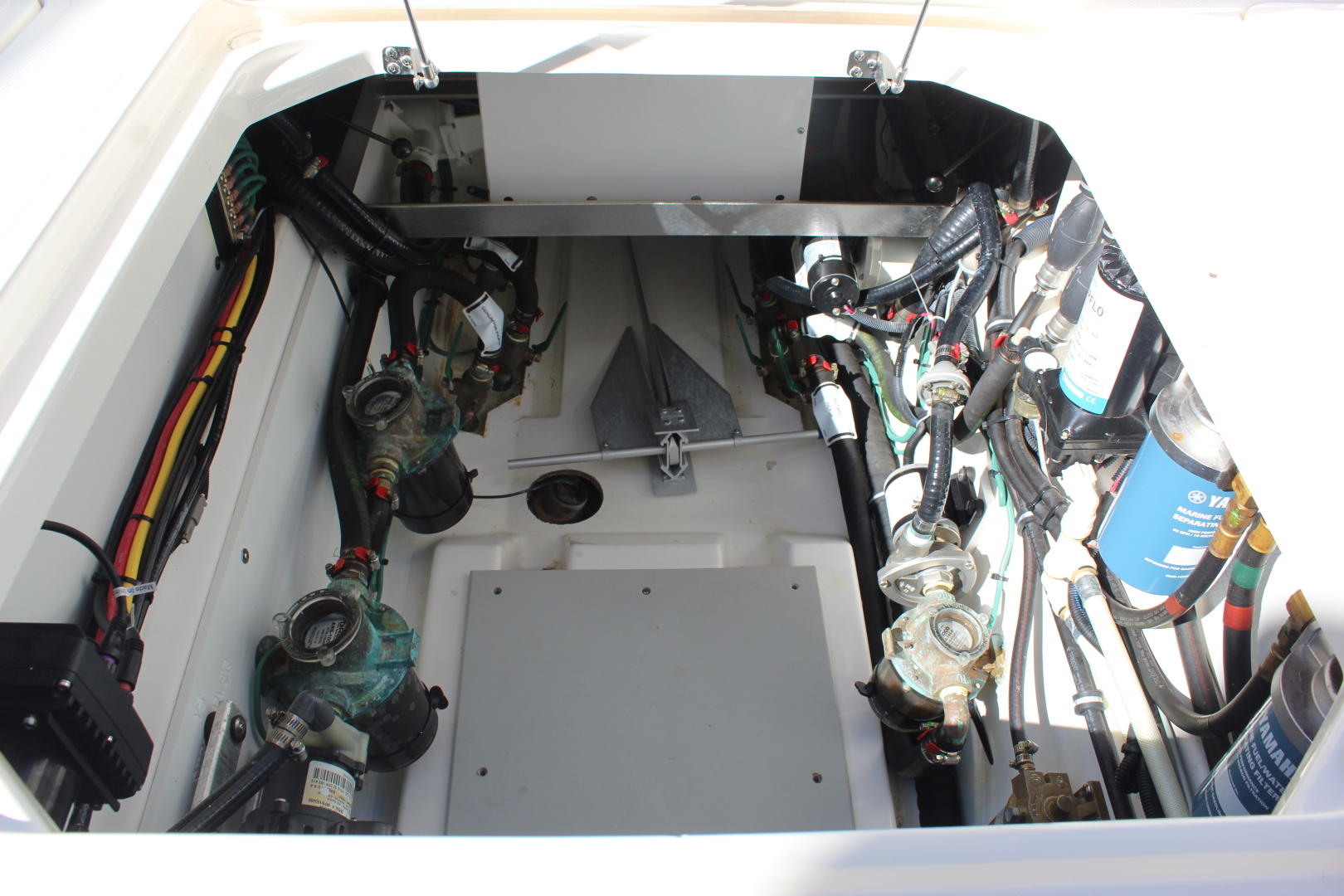

• ·        Mechanical Space
• ·        Molded Interior White Gel Coat
• ·        Molded Hatch with Gasket and SS Gas Spring
• ·        Molded Bilge Sump Area
• ·        Pursuit 355 OS – Nimble Page 6 of 11
• ·        One 900 GPH Bilge Pump with Automatic Float Switch, One 1500 GPH Bilge Pump with High
• ·        Water Float Switch and Alarm w/ SS Clad Composite Thru Hull Fittings
• ·        Fresh Water Pump with Filter
• ·        Raw Water Pump with Bronze Sea Strainer, Sea Cock and Thru Hull Fitting
• ·        Livewell Cyclone Pump with Bronze Sea Strainer
• ·        Generator
• ·        240V/60 Cycle 8.0 kW Fischer Panda® Diesel Generator with Sound Shield and Service Slide
• ·        EPA Compliant Lined 24 Gallon Fuel Tank with Engine Pickups, Shutoff Valves and Digital
• ·        Level Indicator
• ·        Fuel System
• ·        EPA Compliant Lined 375 Gallon Rotomolded Fuel Tanks with Engine Pickups, Shutoff Valves
• ·        and Digital Level Indicator.
• ·        Custom Built Fuel Lines with Mechanically Crimped Fittings
• ·        Two Yamaha® Water Separating Fuel Filters with Primer Bulbs
• ·        Water System
• ·        50 Gallon Water Tank W/Level Indicator
• ·        Custom Built Reinforced Color Coded Water Hose
• ·        Pressure Sensing Pump
• ·        Dockside Fresh Water Inlet W/ Pressure Regulator
• ·        240V 60 Cycle 6 Gallon Stainless Steel Hot Water Heater
• ·        Cockpit Shower with Hot / Cold Mixing Valve
• ·        16 Circuit Water Distribution Manifold with Dedicated Valves
